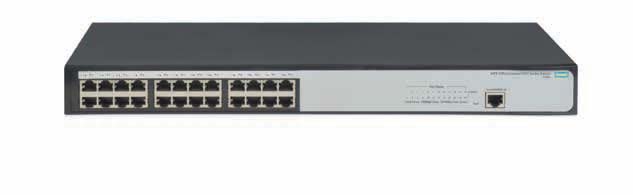

HPE OfficeConnect 1620-24G Switch #JG913A
Entry configurable switches for small business networking,

Features & Benefits:

Management

• Simple Web management
  Allows for easy management of the switch even by nontechnical users through an intuitive Web GUI; supports HTTP and HTTP Secure (HTTPS)
• Secure Web GUI
  Provides a secure, easy-to-use graphical interface for configuring the switch via HTTPS
• SNMPv1, v2c, and v3
  Facilitates management of the switch, as the device can be discovered and monitored from an SNMP management station
• Port mirroring
  Enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
• Default DHCP Client mode
  Allows the switch to be directly connected to a network, enabling plug-and-play operation; in absence of a DHCP server on the network, the switch will fall back to a unique static address determined by the switch’s MAC address
• Network Time Protocol (NTP)
  Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time
• Manual network time configuration
  Manually set the date and time on the switch in the absence of a NTP server
• Dual flash images
  Provide independent primary and secondary operating system files for backup while upgrading

Quality of service (QoS)

• IEEE 802.1p prioritization with DSCP
  Delivers data from the switch to devices based on the priority and type of traffic using Differentiated Services Code Point (DSCP)
• Broadcast control
  Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
• Rate limiting
  Sets per-port ingress enforced maximums and per-port, per-queue minimums

Connectivity

• Auto-MDI/MDIX
  Automatically adjusts for straight-through or crossover cables on all ports
• IEEE 802.3X Flow Control
  Provides a flow throttling mechanism propagated through the network to prevent packet loss at a congested node
• Loopback detection
  If the switch detects a loop, it disables the source port from forwarding data packets originating from the switch to avoid broadcast storms
• Energy Efficient Ethernet
  Compliant with IEEE 802.3az standard requirements to save energy during periods of low data activity
• Port power save mode
  Enables a port to operate at the lowest transmission speed or go down during a specific time range on certain days of a week. The port resumes when the effective time period ends
• Cable test
  Performs a check on the status of the cable connected to an Ethernet port on the device. The test determines whether a short circuit or open circuit is present on the cable and the approximate length to the fault in the cable

Performance

• Half- and full-duplex auto-negotiating capability on every port doubles the throughput of every port
• IGMP Snooping, v1, v2, and v3
  Improves network performance through multicast filtering, instead of flooding traffic to all ports

Layer 2 switching

• VLAN support and tagging
  Supports IEEE 802.1Q with 4,096 simultaneous VLAN IDs
• Jumbo frame support
  Supports up to 10 kilobyte frame size to improve the performance of large data transfers

Resiliency and high availability

• Link aggregation
  Groups together multiple ports (up to a maximum of eight ports per trunk) automatically using Link Aggregation Control Protocol (LACP), or manually, to form an ultra-high-bandwidth connection to the network backbone; helps prevent traffic bottlenecks. Note: 8 port model support 4 trunks, 24 port model support 8 trunks, and the 48 port model support 16 trunks.

Warranty and support

• Limited Lifetime Warranty

Specifications:

	HPE OfficeConnect 1620 8 G Switch (JG912A)	HPE OfficeConnect 1620 24G Switch (JG913A)	HPE OfficeConnect 1620 48G Switch (JG914A)
Ports
	8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 RJ-45 console port to access limited CLI port	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 RJ-45 console port to access limited CLI port	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 RJ-45 console port to access limited CLI port
Physical characteristics
Dimensions	10.47(w) x 6.38(d) x 1.73(h) in (26.59 x 16.21 x 4.39 cm) (1U height)	17.32(w) x 6.81(d) x 1.73(h) in (43.99 x 17.3 x 4.39 cm) (1U height)	17.32(w) x 9.37(d) x 1.73(h) in (43.99 x 23.8 x 4.39 cm)
Weight	2.2 lb (1 kg)	4.85 lb (2.2 kg)	7.28 lb (3.3 kg)
Memory and processor	MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 4.1 Mb	MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 4.1 Mb	MIPS @ 650 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 12 Mb
Mounting	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included), wall mount	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance
100 Mb Latency	< 7 µs	< 7 µs	< 7 µs
1000 Mb Latency	< 5 µs	< 5 µs	< 5 µs
Throughput	up to 11.9 Mpps (64-byte packets)	up to 35.7 Mpps (64-byte packets)	up to 71.4 Mpps (64-byte packets)
Switching capacity	48 Gbps	48 Gbps	96 Gbps
MAC address table size	8192 entries	8192 entries	16384 entries
Reliability
MTBF (years)	138.89	123.46	81.30
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Operating relative humidity	5% to 95% @ 104°F (40°C), noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing
Non-Operating temperature	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)	-40°F to 158°F (-40°C to 70°C)
Non-Operating relative humidity	5% to 95%, noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing
Altitude	up to 16,404 ft (5 km)	up to 16,404 ft (5 km)	up to 16,404 ft (5 km)
Acoustic	No Fan	No Fan	Power: 49.7 dB, Pressure: 49.7 dB; ISO 7779
Electrical characteristics
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Maximum heat dissipation			204 BTU/hr (215.22 kJ/hr)
Voltage	100 - 240 VAC	100 - 240 VAC	100 - 240 VAC
Current	0.5 A	0.4/0.3 A	0.9/0.5 A
Maximum power rating	7 W	15 W	28.2 W
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Certifications
Safety	IEC 60950-1; EN 60950-1; CSA 22.2 60950-1; UL 60950-1 2nd Edition	IEC 60950-1; EN 60950-1; CSA 22.2 60950-1; UL 60950-1 2nd Edition	IEC 60950-1; EN 60950-1; CSA 22.2 60950-1; UL 60950-1 2nd Edition
Emmissions	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A
Services	Refer to the HP website for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
Standards and Protocols (applies to all products in series)
General protocols	IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy Efficient Ethernet IEEE 802.3i 10BASE-T IEEE 802.3x Flow Control

Documentation:

Download the HP 1620 Switch Series Datasheet (PDF).
